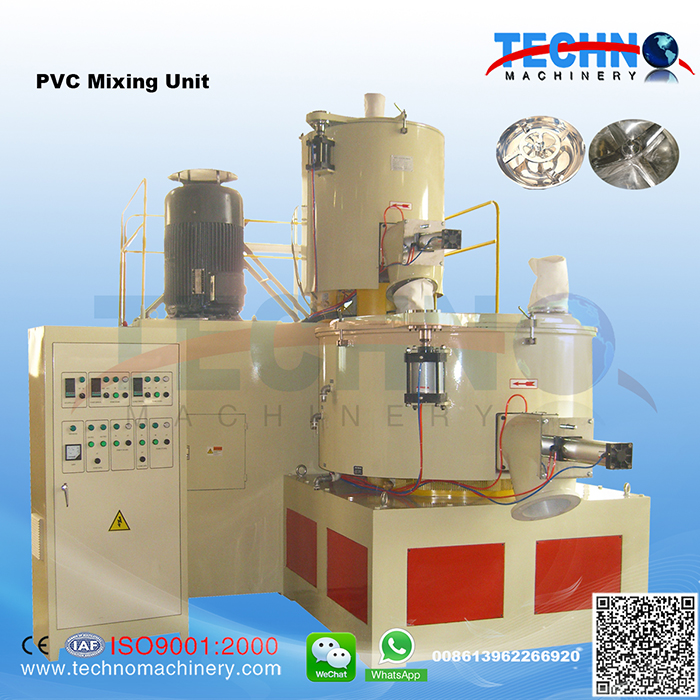

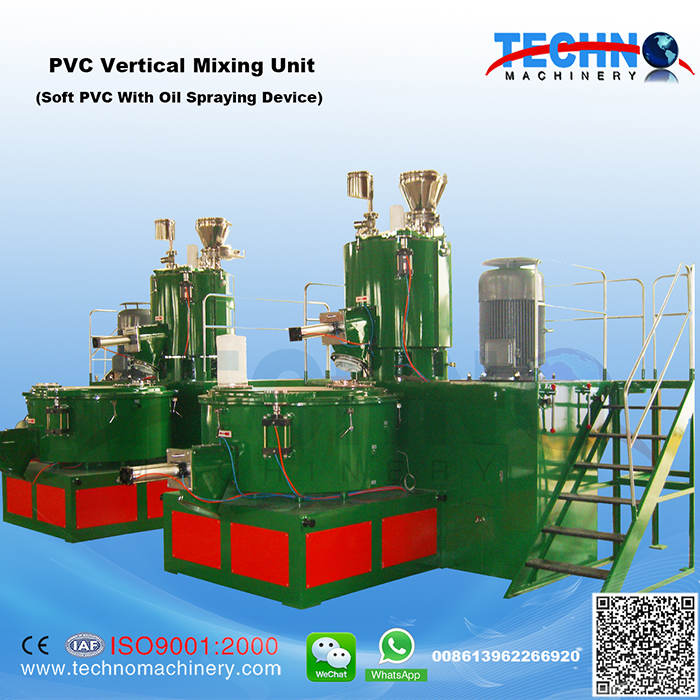

Techno SRL-Z Series PVC High Speed Mixing Unit is mainly for PVC Industry or any other coloring, drying mixing for plastic industry. The unit combines hot mixer with pancake cooler. Normally the cooler capacity is double size of the hot mixer. The mixer blade is 3 terrace Style Blade for Rigid PVC formulation and Round Disk Style for Soft PVC Formulation. The mixing time can be 10-15 minutes per batch.

                                                     Vertical Type PVC Compound Mixer/PVC Mixing Unit

Model
SRL-Z100/200
SRL-Z200/500
SRL-Z300/600
SRL-Z500/1000
SRL-Z800/1600
Total Volume(L)
100/200
200/500
300/600
500/1000
800/1600
Effective Volume(L)
65/130
150/320
225/380
375/650
600/1050
Speed(rpm)
650/1300/80
475/950/80
475/950/80
430/860/60
370/740/50
Heating & Cooling Method
Electric Heating or Self Friction/Water Cooling
Mixing Time(min)
8-12
8-12
8-12
8-12
8-15
Motor Power(kw)
14/22/7.5
30/42/11
40/55/11
47/67/15
60/90/22
Figure Size(mm)
1950×1600×1800
4580×2240×2470
4800×2640×2480
4600×3000×4050
5170×3200×4480
Weight(kg)
2200
3400
3600
4800
6200
