PVC high speed pulverizer is mainly used for grinding PVC granules or recycling waste materials into powder. This pulverizer uses new type cutting tool, it has the features of high output, fine grinding, energy conservation and environmental protection. The installation for this pulverizer is convenient,just opening the grinding room gate to clean and maintain, the whole pulverizing process is fully sealed, there is no dust leakage. The grinding gap can be adjusted easily,just use the feeler gauge and adjust the bolt to realize the accurate adjustment. The cooling system of pulverizer adopts the combination of wind and water, which has much better cooling effect.

                                                                 China High Speed PVC Pulverizer

Model

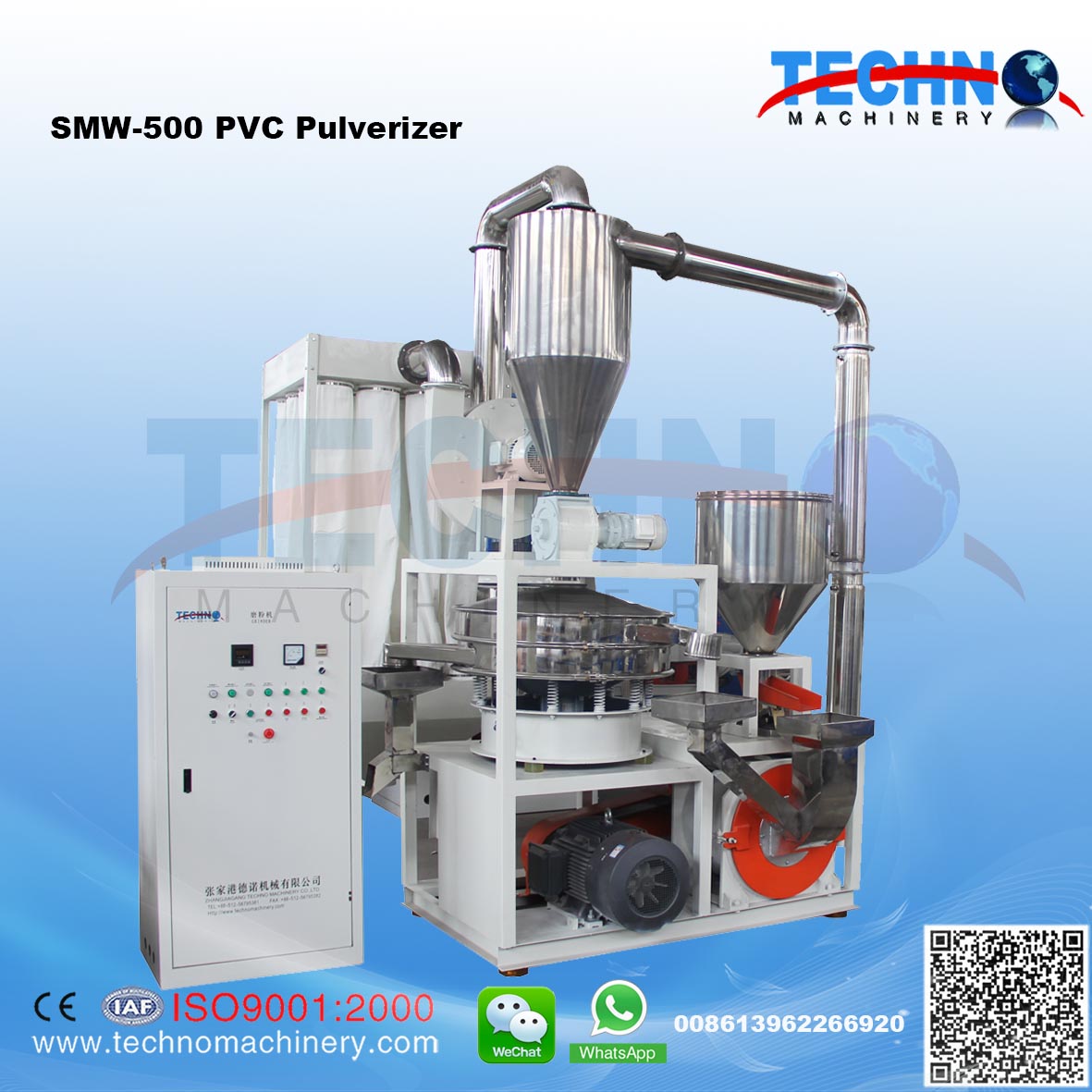

SMW-500
SMW-600

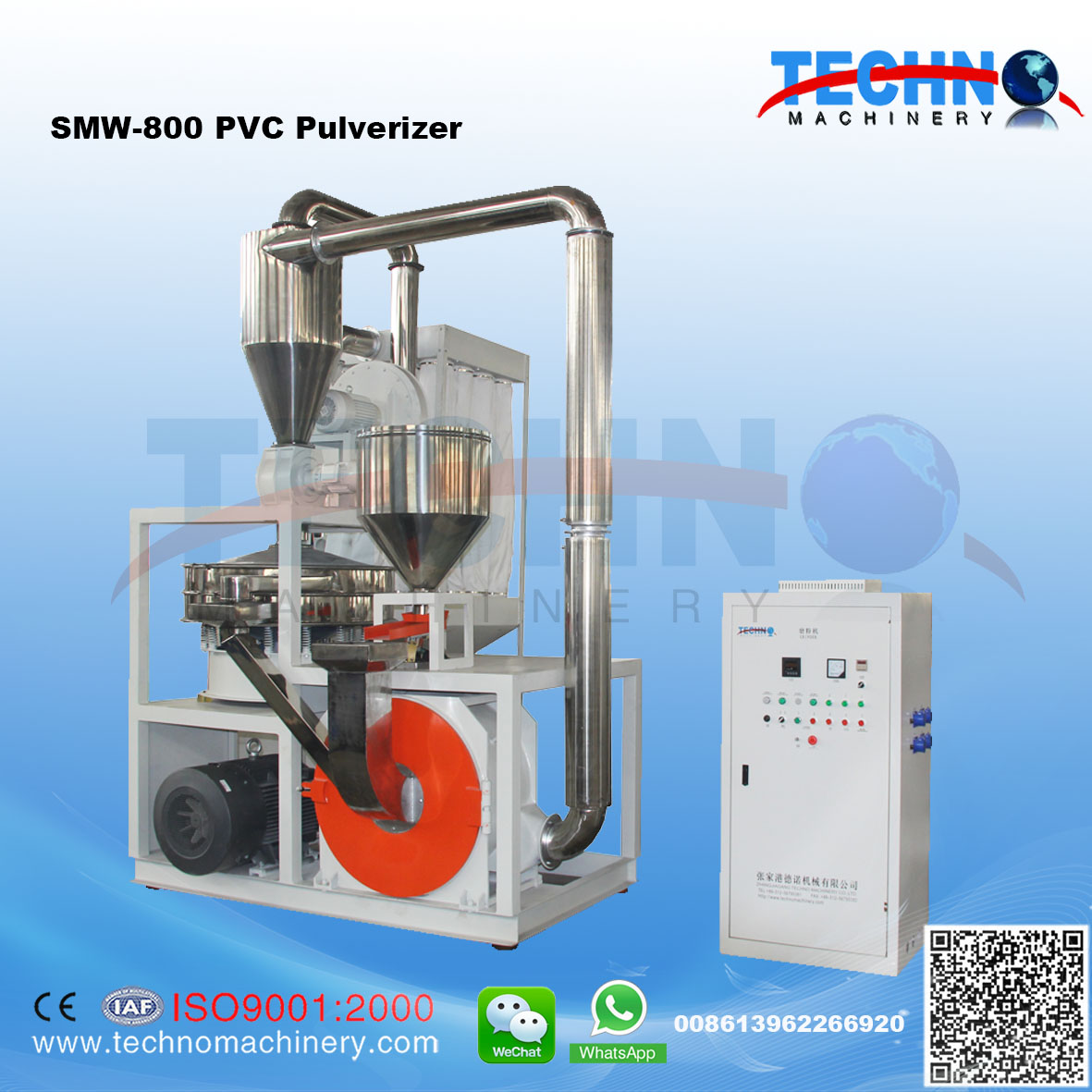

SMW-800
Grinding Room Dia(mm)
Φ500
Φ600
Φ800
Speed(rpm)
3800
3800
3800
Motor(kw)
37
55
75
Fan(kw)
2.2
4
5.5
Particle Size(micron)
12-120
12-120
12-120
Output(kg/h)
150-200
200-300
400-500
Vibration Sieve
0.75
0.75
0.75
Deduster
16 Bags
16 Bags
16 Bags
Cooling System
Water Cool
Water Cool
Water Cool
Weight(kg)
1200
1550
1950
  Size(mm)
5900×1450×2900
5900×1450×2900
6500X1850X2900
